EXFO and Verizon on easy methods to successfully resolve PIM points that affect community efficiency and drive up opex
Passive intermodulation (PIM) is a large headache for cell community operators. PIM can materially affect community efficiency whereas additionally costing operators money and time as they work to determine the supply and work in the direction of a repair. Talking throughout the latest Take a look at and Measurement Discussion board (accessible on demand right here), EXFO’s Danny Sleiman, enterprise growth supervisor for international 5G technique, stated that right this moment decision of PIM points takes 2.5 web site visits with a mean of 12 hours to resolve bother tickets. Moreover, in two out of three circumstances, antennas are unnecessarily changed.
PIM is available in two flavors. Inside PIM outcomes from an operator’s personal system–issues like dangerous cabling or broken connectors, and is often confined to single community branches. Exterior PIM usually impacts a number of branches and comes from issues like shopper sign boosters near cell websites, oscillating repeaters, overseas wi-fi units and even digital indicators.
From the operator perspective, Verizon Affiliate Fellow Dennis Mccool laid it out: “There’s a hyper give attention to operational expense…The operational expense related to RF techniques is giant, and as we add frequencies, as we add energy, the issues related to PIM go non-linear. In the event you’re going to have an effect on your opex numbers, you’re actually going to should be on level on the subject of RF points, and PIM is actually a type of issues, particularly exterior PIM.”
He referred to as for quite a few changes that might assist operators extra time- and cost-effectively deal with PIM and the issues it creates. First issues first, operators want to have the ability to appropriately determine PIM versus another sort of exterior interference “in any other case you’re going to start out dispatching contractors for tower climbs or to do interference work. In the event you misidentify what’s occurring. That’s waste; that’s a big waste.”
One other greatest apply, Mccool stated, is considering PIM when deploying new websites. In the actual world that might imply placing antennas on the surface edges of buildings, not contained in the parapet, and avoiding recognized PIM-causing components in favor of PIM-free alternate options. “It appears very simple, however we’re not on this apply. We should always actually be designing websites with PIM-free {hardware}.” He described this as “PIM hygiene.”
Relating to exterior PIM, Mccool stated it’s essential to solely interact with licensed contractors who’ve had the requisite coaching and hands-on expertise. “We completely as an business want to speak the necessity for certification for exterior PIM particularly.”
Troubleshooting PIM with RF over CPRI evaluation

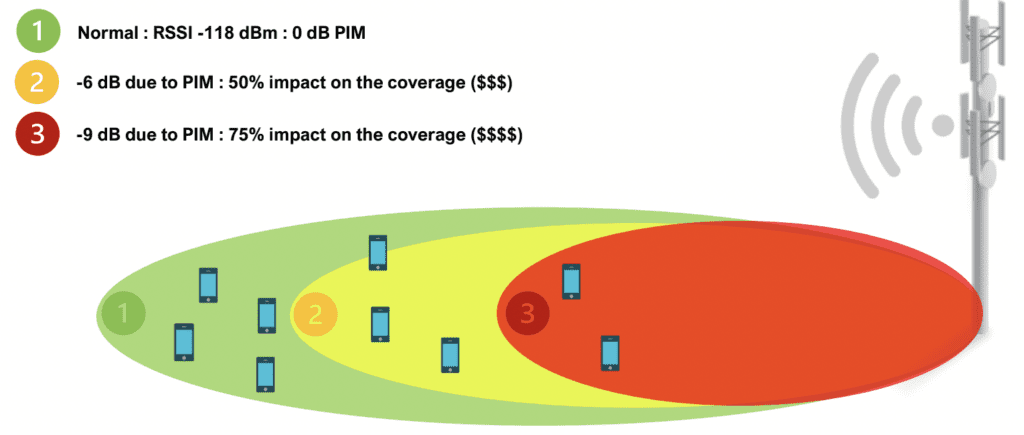

Sleiman agreed with the concept all of it begins with PIM hygiene however, when it comes to troubleshooting, he highlighted EXFO’s method of tapping into the CPRI connection between a base station and radio to research PIM’s affect on RF and community efficiency. He additionally identified that growing ranges of PIM can have an enormous (non-linear as Mccool stated) affect on per web site protection.
He laid out “a trusted methodology of troubleshooting PIM…The very first thing that must be completed is, ‘Are you able to resolve this PIM challenge with out pulling any tools?’” From there, techs ought to decide if it’s inside or exterior, then comply with the circulation chart from there. “In the event you comply with each step and you employ the proper instruments, you’re going to get to a degree the place you shut your ticket and also you’re not going to have any pointless prices…and no radios being changed.”
Discussing the RF over CPRI method, Sleiman identified that the positioning stays operational throughout the take a look at section, and since there’s no have to disconnect any RF connections, there’s much less alternative to introduce new PIM. As a result of the positioning stays lively, techs can see enhancements or degradations as they’re occurring. “This may be completed in underneath 20 minutes. You’re capable of know [if] you have got an inside challenge or an exterior challenge…The enhancements which can be completed on the positioning utilizing your take a look at tools and the CPRI analyzer methodology will lead to KPI enhancements to your system.”
Recall Sleiman’s earlier figures round PIM. He stated that with the CPRI analyzer methodology, the typical of two.5 web site visits drops to 1.5 web site visits, the time to decision drops from 12 hours to 6 hours on common, and as a substitute of unnecessarily changing two out of three antennas, it’s not essentially to switch any antennas.
Does AI/ML have a job to play?
Mccool stated that utilizing AI would require growth of a mannequin whereas many of those sort of issues boil right down to basic math. On AI, “In lots of circumstances, you simply don’t want it as a result of there’s quite simple methods to go after these items.” He additionally identified that automation tooling mis-categorizing issues is presently a problem operators should cope with. “Id’ be fearful about using AI to switch staff…Why are we desirous to go use AI? Is it to make issues higher or is it to enhance the bottomline?”
Sleiman acknowledged that AI has some place right here however, on the finish of the day, “It’s powerful to pinpoint precisely the place’s the problem.” AI can be utilized to simplify configuration and a few elements of troubleshooting however “to determine precisely that location or what it’s, it’s laborious to do, or virtually not possible” utilizing AI versus skilled technicians outfitted with the proper instruments.
